Databricks - Setting up Custom External Hive Metastore in Azure using MSSQL Server

Oct 21, 2021 | 4022 Words | 19 min | #databricks #apache-spark

So you want to store you Hive database externally instead of the built-in databricks database? I’m not going to ask why, you have reasons, and there’s official document. But i’ll describe the steps that worked for me.

Create SQL Database

First, you need SQL database, i’m not going to describe how you create it, as there are plenty of online resources.

But important things to note from production experience are:

Name your database in lowercase only.
Do not use any special characters, i.e. hyphens etc. Name it simple, something like “meta”. There are various bugs in Databricks that do not work well with weird names.
Even for production workload, Basic pricing tier is more than enough. It’s only metadata that is stored, traffic is very minimal, and Basic limit of 2gb for metadata is impossible to reach.

Initialise Metastore Database

Ok, once done, you need to create necessary tables for metastore DB. If you have an external connectivity to SQL server, just use any tool to connect to it. If you only have connectivity from databricks itself (corporate firewalls etc.) you can run the following Scala code from the notebook itself.

Cell 1. The DDL Script Definition.

val script = """
-- Licensed to the Apache Software Foundation (ASF) under one or more
-- contributor license agreements.  See the NOTICE file distributed with
-- this work for additional information regarding copyright ownership.
-- The ASF licenses this file to You under the Apache License, Version 2.0
-- (the "License"); you may not use this file except in compliance with
-- the License.  You may obtain a copy of the License at
--
--     http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.

------------------------------------------------------------------
-- DataNucleus SchemaTool (ran at 08/04/2014 15:10:15)
------------------------------------------------------------------
-- Complete schema required for the following classes:-
--     org.apache.hadoop.hive.metastore.model.MColumnDescriptor
--     org.apache.hadoop.hive.metastore.model.MDBPrivilege
--     org.apache.hadoop.hive.metastore.model.MDatabase
--     org.apache.hadoop.hive.metastore.model.MDelegationToken
--     org.apache.hadoop.hive.metastore.model.MFieldSchema
--     org.apache.hadoop.hive.metastore.model.MFunction
--     org.apache.hadoop.hive.metastore.model.MGlobalPrivilege
--     org.apache.hadoop.hive.metastore.model.MIndex
--     org.apache.hadoop.hive.metastore.model.MMasterKey
--     org.apache.hadoop.hive.metastore.model.MOrder
--     org.apache.hadoop.hive.metastore.model.MPartition
--     org.apache.hadoop.hive.metastore.model.MPartitionColumnPrivilege
--     org.apache.hadoop.hive.metastore.model.MPartitionColumnStatistics
--     org.apache.hadoop.hive.metastore.model.MPartitionEvent
--     org.apache.hadoop.hive.metastore.model.MPartitionPrivilege
--     org.apache.hadoop.hive.metastore.model.MResourceUri
--     org.apache.hadoop.hive.metastore.model.MRole
--     org.apache.hadoop.hive.metastore.model.MRoleMap
--     org.apache.hadoop.hive.metastore.model.MSerDeInfo
--     org.apache.hadoop.hive.metastore.model.MStorageDescriptor
--     org.apache.hadoop.hive.metastore.model.MStringList
--     org.apache.hadoop.hive.metastore.model.MTable
--     org.apache.hadoop.hive.metastore.model.MTableColumnPrivilege
--     org.apache.hadoop.hive.metastore.model.MTableColumnStatistics
--     org.apache.hadoop.hive.metastore.model.MTablePrivilege
--     org.apache.hadoop.hive.metastore.model.MType
--     org.apache.hadoop.hive.metastore.model.MVersionTable
--
-- Table MASTER_KEYS for classes [org.apache.hadoop.hive.metastore.model.MMasterKey]
CREATE TABLE MASTER_KEYS
(
    KEY_ID int NOT NULL,
    MASTER_KEY nvarchar(767) NULL
);

ALTER TABLE MASTER_KEYS ADD CONSTRAINT MASTER_KEYS_PK PRIMARY KEY (KEY_ID);

-- Table IDXS for classes [org.apache.hadoop.hive.metastore.model.MIndex]
CREATE TABLE IDXS
(
    INDEX_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    DEFERRED_REBUILD bit NOT NULL,
    INDEX_HANDLER_CLASS nvarchar(4000) NULL,
    INDEX_NAME nvarchar(128) NULL,
    INDEX_TBL_ID bigint NULL,
    LAST_ACCESS_TIME int NOT NULL,
    ORIG_TBL_ID bigint NULL,
    SD_ID bigint NULL
);

ALTER TABLE IDXS ADD CONSTRAINT IDXS_PK PRIMARY KEY (INDEX_ID);

-- Table PART_COL_STATS for classes [org.apache.hadoop.hive.metastore.model.MPartitionColumnStatistics]
CREATE TABLE PART_COL_STATS
(
    CS_ID bigint NOT NULL,
    AVG_COL_LEN float NULL,
    "COLUMN_NAME" nvarchar(767) NOT NULL,
    COLUMN_TYPE nvarchar(128) NOT NULL,
    DB_NAME nvarchar(128) NOT NULL,
    BIG_DECIMAL_HIGH_VALUE nvarchar(255) NULL,
    BIG_DECIMAL_LOW_VALUE nvarchar(255) NULL,
    DOUBLE_HIGH_VALUE float NULL,
    DOUBLE_LOW_VALUE float NULL,
    LAST_ANALYZED bigint NOT NULL,
    LONG_HIGH_VALUE bigint NULL,
    LONG_LOW_VALUE bigint NULL,
    MAX_COL_LEN bigint NULL,
    NUM_DISTINCTS bigint NULL,
    NUM_FALSES bigint NULL,
    NUM_NULLS bigint NOT NULL,
    NUM_TRUES bigint NULL,
    PART_ID bigint NULL,
    PARTITION_NAME nvarchar(767) NOT NULL,
    "TABLE_NAME" nvarchar(256) NOT NULL
);

ALTER TABLE PART_COL_STATS ADD CONSTRAINT PART_COL_STATS_PK PRIMARY KEY (CS_ID);

CREATE INDEX PCS_STATS_IDX ON PART_COL_STATS (DB_NAME,TABLE_NAME,COLUMN_NAME,PARTITION_NAME);

-- Table PART_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MPartitionPrivilege]
CREATE TABLE PART_PRIVS
(
    PART_GRANT_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PART_ID bigint NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    PART_PRIV nvarchar(128) NULL
);

ALTER TABLE PART_PRIVS ADD CONSTRAINT PART_PRIVS_PK PRIMARY KEY (PART_GRANT_ID);

-- Table SKEWED_STRING_LIST for classes [org.apache.hadoop.hive.metastore.model.MStringList]
CREATE TABLE SKEWED_STRING_LIST
(
    STRING_LIST_ID bigint NOT NULL
);

ALTER TABLE SKEWED_STRING_LIST ADD CONSTRAINT SKEWED_STRING_LIST_PK PRIMARY KEY (STRING_LIST_ID);

-- Table ROLES for classes [org.apache.hadoop.hive.metastore.model.MRole]
CREATE TABLE ROLES
(
    ROLE_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    OWNER_NAME nvarchar(128) NULL,
    ROLE_NAME nvarchar(128) NULL
);

ALTER TABLE ROLES ADD CONSTRAINT ROLES_PK PRIMARY KEY (ROLE_ID);

-- Table PARTITIONS for classes [org.apache.hadoop.hive.metastore.model.MPartition]
CREATE TABLE PARTITIONS
(
    PART_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    LAST_ACCESS_TIME int NOT NULL,
    PART_NAME nvarchar(767) NULL,
    SD_ID bigint NULL,
    TBL_ID bigint NULL
);

ALTER TABLE PARTITIONS ADD CONSTRAINT PARTITIONS_PK PRIMARY KEY (PART_ID);

-- Table CDS for classes [org.apache.hadoop.hive.metastore.model.MColumnDescriptor]
CREATE TABLE CDS
(
    CD_ID bigint NOT NULL
);

ALTER TABLE CDS ADD CONSTRAINT CDS_PK PRIMARY KEY (CD_ID);

-- Table VERSION for classes [org.apache.hadoop.hive.metastore.model.MVersionTable]
CREATE TABLE VERSION
(
    VER_ID bigint NOT NULL,
    SCHEMA_VERSION nvarchar(127) NOT NULL,
    VERSION_COMMENT nvarchar(255) NOT NULL
);

ALTER TABLE VERSION ADD CONSTRAINT VERSION_PK PRIMARY KEY (VER_ID);

-- Table GLOBAL_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MGlobalPrivilege]
CREATE TABLE GLOBAL_PRIVS
(
    USER_GRANT_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    USER_PRIV nvarchar(128) NULL
);

ALTER TABLE GLOBAL_PRIVS ADD CONSTRAINT GLOBAL_PRIVS_PK PRIMARY KEY (USER_GRANT_ID);

-- Table PART_COL_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MPartitionColumnPrivilege]
CREATE TABLE PART_COL_PRIVS
(
    PART_COLUMN_GRANT_ID bigint NOT NULL,
    "COLUMN_NAME" nvarchar(767) NULL,
    CREATE_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PART_ID bigint NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    PART_COL_PRIV nvarchar(128) NULL
);

ALTER TABLE PART_COL_PRIVS ADD CONSTRAINT PART_COL_PRIVS_PK PRIMARY KEY (PART_COLUMN_GRANT_ID);

-- Table DB_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MDBPrivilege]
CREATE TABLE DB_PRIVS
(
    DB_GRANT_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    DB_ID bigint NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    DB_PRIV nvarchar(128) NULL
);

ALTER TABLE DB_PRIVS ADD CONSTRAINT DB_PRIVS_PK PRIMARY KEY (DB_GRANT_ID);

-- Table TAB_COL_STATS for classes [org.apache.hadoop.hive.metastore.model.MTableColumnStatistics]
CREATE TABLE TAB_COL_STATS
(
    CS_ID bigint NOT NULL,
    AVG_COL_LEN float NULL,
    "COLUMN_NAME" nvarchar(767) NOT NULL,
    COLUMN_TYPE nvarchar(128) NOT NULL,
    DB_NAME nvarchar(128) NOT NULL,
    BIG_DECIMAL_HIGH_VALUE nvarchar(255) NULL,
    BIG_DECIMAL_LOW_VALUE nvarchar(255) NULL,
    DOUBLE_HIGH_VALUE float NULL,
    DOUBLE_LOW_VALUE float NULL,
    LAST_ANALYZED bigint NOT NULL,
    LONG_HIGH_VALUE bigint NULL,
    LONG_LOW_VALUE bigint NULL,
    MAX_COL_LEN bigint NULL,
    NUM_DISTINCTS bigint NULL,
    NUM_FALSES bigint NULL,
    NUM_NULLS bigint NOT NULL,
    NUM_TRUES bigint NULL,
    TBL_ID bigint NULL,
    "TABLE_NAME" nvarchar(256) NOT NULL
);

ALTER TABLE TAB_COL_STATS ADD CONSTRAINT TAB_COL_STATS_PK PRIMARY KEY (CS_ID);

-- Table TYPES for classes [org.apache.hadoop.hive.metastore.model.MType]
CREATE TABLE TYPES
(
    TYPES_ID bigint NOT NULL,
    TYPE_NAME nvarchar(128) NULL,
    TYPE1 nvarchar(767) NULL,
    TYPE2 nvarchar(767) NULL
);

ALTER TABLE TYPES ADD CONSTRAINT TYPES_PK PRIMARY KEY (TYPES_ID);

-- Table TBL_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MTablePrivilege]
CREATE TABLE TBL_PRIVS
(
    TBL_GRANT_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    TBL_PRIV nvarchar(128) NULL,
    TBL_ID bigint NULL
);

ALTER TABLE TBL_PRIVS ADD CONSTRAINT TBL_PRIVS_PK PRIMARY KEY (TBL_GRANT_ID);

-- Table DBS for classes [org.apache.hadoop.hive.metastore.model.MDatabase]
CREATE TABLE DBS
(
    DB_ID bigint NOT NULL,
    "DESC" nvarchar(4000) NULL,
    DB_LOCATION_URI nvarchar(4000) NOT NULL,
    "NAME" nvarchar(128) NULL,
    OWNER_NAME nvarchar(128) NULL,
    OWNER_TYPE nvarchar(10) NULL
);

ALTER TABLE DBS ADD CONSTRAINT DBS_PK PRIMARY KEY (DB_ID);

-- Table TBL_COL_PRIVS for classes [org.apache.hadoop.hive.metastore.model.MTableColumnPrivilege]
CREATE TABLE TBL_COL_PRIVS
(
    TBL_COLUMN_GRANT_ID bigint NOT NULL,
    "COLUMN_NAME" nvarchar(767) NULL,
    CREATE_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    TBL_COL_PRIV nvarchar(128) NULL,
    TBL_ID bigint NULL
);

ALTER TABLE TBL_COL_PRIVS ADD CONSTRAINT TBL_COL_PRIVS_PK PRIMARY KEY (TBL_COLUMN_GRANT_ID);

-- Table DELEGATION_TOKENS for classes [org.apache.hadoop.hive.metastore.model.MDelegationToken]
CREATE TABLE DELEGATION_TOKENS
(
    TOKEN_IDENT nvarchar(767) NOT NULL,
    TOKEN nvarchar(767) NULL
);

ALTER TABLE DELEGATION_TOKENS ADD CONSTRAINT DELEGATION_TOKENS_PK PRIMARY KEY (TOKEN_IDENT);

-- Table SERDES for classes [org.apache.hadoop.hive.metastore.model.MSerDeInfo]
CREATE TABLE SERDES
(
    SERDE_ID bigint NOT NULL,
    "NAME" nvarchar(128) NULL,
    SLIB nvarchar(4000) NULL
);

ALTER TABLE SERDES ADD CONSTRAINT SERDES_PK PRIMARY KEY (SERDE_ID);

-- Table FUNCS for classes [org.apache.hadoop.hive.metastore.model.MFunction]
CREATE TABLE FUNCS
(
    FUNC_ID bigint NOT NULL,
    CLASS_NAME nvarchar(4000) NULL,
    CREATE_TIME int NOT NULL,
    DB_ID bigint NULL,
    FUNC_NAME nvarchar(128) NULL,
    FUNC_TYPE int NOT NULL,
    OWNER_NAME nvarchar(128) NULL,
    OWNER_TYPE nvarchar(10) NULL
);

ALTER TABLE FUNCS ADD CONSTRAINT FUNCS_PK PRIMARY KEY (FUNC_ID);

-- Table ROLE_MAP for classes [org.apache.hadoop.hive.metastore.model.MRoleMap]
CREATE TABLE ROLE_MAP
(
    ROLE_GRANT_ID bigint NOT NULL,
    ADD_TIME int NOT NULL,
    GRANT_OPTION smallint NOT NULL CHECK (GRANT_OPTION IN (0,1)),
    GRANTOR nvarchar(128) NULL,
    GRANTOR_TYPE nvarchar(128) NULL,
    PRINCIPAL_NAME nvarchar(128) NULL,
    PRINCIPAL_TYPE nvarchar(128) NULL,
    ROLE_ID bigint NULL
);

ALTER TABLE ROLE_MAP ADD CONSTRAINT ROLE_MAP_PK PRIMARY KEY (ROLE_GRANT_ID);

-- Table TBLS for classes [org.apache.hadoop.hive.metastore.model.MTable]
CREATE TABLE TBLS
(
    TBL_ID bigint NOT NULL,
    CREATE_TIME int NOT NULL,
    DB_ID bigint NULL,
    LAST_ACCESS_TIME int NOT NULL,
    OWNER nvarchar(767) NULL,
    RETENTION int NOT NULL,
    SD_ID bigint NULL,
    TBL_NAME nvarchar(256) NULL,
    TBL_TYPE nvarchar(128) NULL,
    VIEW_EXPANDED_TEXT text NULL,
    VIEW_ORIGINAL_TEXT text NULL,
    IS_REWRITE_ENABLED bit NOT NULL DEFAULT 0
);

ALTER TABLE TBLS ADD CONSTRAINT TBLS_PK PRIMARY KEY (TBL_ID);

-- Table SDS for classes [org.apache.hadoop.hive.metastore.model.MStorageDescriptor]
CREATE TABLE SDS
(
    SD_ID bigint NOT NULL,
    CD_ID bigint NULL,
    INPUT_FORMAT nvarchar(4000) NULL,
    IS_COMPRESSED bit NOT NULL,
    IS_STOREDASSUBDIRECTORIES bit NOT NULL,
    LOCATION nvarchar(4000) NULL,
    NUM_BUCKETS int NOT NULL,
    OUTPUT_FORMAT nvarchar(4000) NULL,
    SERDE_ID bigint NULL
);

ALTER TABLE SDS ADD CONSTRAINT SDS_PK PRIMARY KEY (SD_ID);

-- Table PARTITION_EVENTS for classes [org.apache.hadoop.hive.metastore.model.MPartitionEvent]
CREATE TABLE PARTITION_EVENTS
(
    PART_NAME_ID bigint NOT NULL,
    DB_NAME nvarchar(128) NULL,
    EVENT_TIME bigint NOT NULL,
    EVENT_TYPE int NOT NULL,
    PARTITION_NAME nvarchar(767) NULL,
    TBL_NAME nvarchar(256) NULL
);

ALTER TABLE PARTITION_EVENTS ADD CONSTRAINT PARTITION_EVENTS_PK PRIMARY KEY (PART_NAME_ID);

-- Table SORT_COLS for join relationship
CREATE TABLE SORT_COLS
(
    SD_ID bigint NOT NULL,
    "COLUMN_NAME" nvarchar(767) NULL,
    "ORDER" int NOT NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE SORT_COLS ADD CONSTRAINT SORT_COLS_PK PRIMARY KEY (SD_ID,INTEGER_IDX);

-- Table SKEWED_COL_NAMES for join relationship
CREATE TABLE SKEWED_COL_NAMES
(
    SD_ID bigint NOT NULL,
    SKEWED_COL_NAME nvarchar(255) NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE SKEWED_COL_NAMES ADD CONSTRAINT SKEWED_COL_NAMES_PK PRIMARY KEY (SD_ID,INTEGER_IDX);

-- Table SKEWED_COL_VALUE_LOC_MAP for join relationship
CREATE TABLE SKEWED_COL_VALUE_LOC_MAP
(
    SD_ID bigint NOT NULL,
    STRING_LIST_ID_KID bigint NOT NULL,
    LOCATION nvarchar(4000) NULL
);

ALTER TABLE SKEWED_COL_VALUE_LOC_MAP ADD CONSTRAINT SKEWED_COL_VALUE_LOC_MAP_PK PRIMARY KEY (SD_ID,STRING_LIST_ID_KID);

-- Table SKEWED_STRING_LIST_VALUES for join relationship
CREATE TABLE SKEWED_STRING_LIST_VALUES
(
    STRING_LIST_ID bigint NOT NULL,
    STRING_LIST_VALUE nvarchar(255) NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE SKEWED_STRING_LIST_VALUES ADD CONSTRAINT SKEWED_STRING_LIST_VALUES_PK PRIMARY KEY (STRING_LIST_ID,INTEGER_IDX);

-- Table PARTITION_KEY_VALS for join relationship
CREATE TABLE PARTITION_KEY_VALS
(
    PART_ID bigint NOT NULL,
    PART_KEY_VAL nvarchar(255) NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE PARTITION_KEY_VALS ADD CONSTRAINT PARTITION_KEY_VALS_PK PRIMARY KEY (PART_ID,INTEGER_IDX);

-- Table PARTITION_KEYS for join relationship
CREATE TABLE PARTITION_KEYS
(
    TBL_ID bigint NOT NULL,
    PKEY_COMMENT nvarchar(4000) NULL,
    PKEY_NAME nvarchar(128) NOT NULL,
    PKEY_TYPE nvarchar(767) NOT NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE PARTITION_KEYS ADD CONSTRAINT PARTITION_KEY_PK PRIMARY KEY (TBL_ID,PKEY_NAME);

-- Table SKEWED_VALUES for join relationship
CREATE TABLE SKEWED_VALUES
(
    SD_ID_OID bigint NOT NULL,
    STRING_LIST_ID_EID bigint NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE SKEWED_VALUES ADD CONSTRAINT SKEWED_VALUES_PK PRIMARY KEY (SD_ID_OID,INTEGER_IDX);

-- Table SD_PARAMS for join relationship
CREATE TABLE SD_PARAMS
(
    SD_ID bigint NOT NULL,
    PARAM_KEY nvarchar(256) NOT NULL,
    PARAM_VALUE varchar(max) NULL
);

ALTER TABLE SD_PARAMS ADD CONSTRAINT SD_PARAMS_PK PRIMARY KEY (SD_ID,PARAM_KEY);

-- Table FUNC_RU for join relationship
CREATE TABLE FUNC_RU
(
    FUNC_ID bigint NOT NULL,
    RESOURCE_TYPE int NOT NULL,
    RESOURCE_URI nvarchar(4000) NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE FUNC_RU ADD CONSTRAINT FUNC_RU_PK PRIMARY KEY (FUNC_ID,INTEGER_IDX);

-- Table TYPE_FIELDS for join relationship
CREATE TABLE TYPE_FIELDS
(
    TYPE_NAME bigint NOT NULL,
    COMMENT nvarchar(256) NULL,
    FIELD_NAME nvarchar(128) NOT NULL,
    FIELD_TYPE nvarchar(767) NOT NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE TYPE_FIELDS ADD CONSTRAINT TYPE_FIELDS_PK PRIMARY KEY (TYPE_NAME,FIELD_NAME);

-- Table BUCKETING_COLS for join relationship
CREATE TABLE BUCKETING_COLS
(
    SD_ID bigint NOT NULL,
    BUCKET_COL_NAME nvarchar(255) NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE BUCKETING_COLS ADD CONSTRAINT BUCKETING_COLS_PK PRIMARY KEY (SD_ID,INTEGER_IDX);

-- Table DATABASE_PARAMS for join relationship
CREATE TABLE DATABASE_PARAMS
(
    DB_ID bigint NOT NULL,
    PARAM_KEY nvarchar(180) NOT NULL,
    PARAM_VALUE nvarchar(4000) NULL
);

ALTER TABLE DATABASE_PARAMS ADD CONSTRAINT DATABASE_PARAMS_PK PRIMARY KEY (DB_ID,PARAM_KEY);

-- Table INDEX_PARAMS for join relationship
CREATE TABLE INDEX_PARAMS
(
    INDEX_ID bigint NOT NULL,
    PARAM_KEY nvarchar(256) NOT NULL,
    PARAM_VALUE nvarchar(4000) NULL
);

ALTER TABLE INDEX_PARAMS ADD CONSTRAINT INDEX_PARAMS_PK PRIMARY KEY (INDEX_ID,PARAM_KEY);

-- Table COLUMNS_V2 for join relationship
CREATE TABLE COLUMNS_V2
(
    CD_ID bigint NOT NULL,
    COMMENT nvarchar(256) NULL,
    "COLUMN_NAME" nvarchar(767) NOT NULL,
    TYPE_NAME varchar(max) NOT NULL,
    INTEGER_IDX int NOT NULL
);

ALTER TABLE COLUMNS_V2 ADD CONSTRAINT COLUMNS_PK PRIMARY KEY (CD_ID,"COLUMN_NAME");

-- Table SERDE_PARAMS for join relationship
CREATE TABLE SERDE_PARAMS
(
    SERDE_ID bigint NOT NULL,
    PARAM_KEY nvarchar(256) NOT NULL,
    PARAM_VALUE varchar(max) NULL
);

ALTER TABLE SERDE_PARAMS ADD CONSTRAINT SERDE_PARAMS_PK PRIMARY KEY (SERDE_ID,PARAM_KEY);

-- Table PARTITION_PARAMS for join relationship
CREATE TABLE PARTITION_PARAMS
(
    PART_ID bigint NOT NULL,
    PARAM_KEY nvarchar(256) NOT NULL,
    PARAM_VALUE nvarchar(4000) NULL
);

ALTER TABLE PARTITION_PARAMS ADD CONSTRAINT PARTITION_PARAMS_PK PRIMARY KEY (PART_ID,PARAM_KEY);

-- Table TABLE_PARAMS for join relationship
CREATE TABLE TABLE_PARAMS
(
    TBL_ID bigint NOT NULL,
    PARAM_KEY nvarchar(256) NOT NULL,
    PARAM_VALUE varchar(max) NULL
);

ALTER TABLE TABLE_PARAMS ADD CONSTRAINT TABLE_PARAMS_PK PRIMARY KEY (TBL_ID,PARAM_KEY);

CREATE TABLE NOTIFICATION_LOG
(
    NL_ID bigint NOT NULL,
    EVENT_ID bigint NOT NULL,
    EVENT_TIME int NOT NULL,
    EVENT_TYPE nvarchar(32) NOT NULL,
    DB_NAME nvarchar(128) NULL,
    TBL_NAME nvarchar(256) NULL,
    MESSAGE_FORMAT nvarchar(16),
    MESSAGE text NULL
);

ALTER TABLE NOTIFICATION_LOG ADD CONSTRAINT NOTIFICATION_LOG_PK PRIMARY KEY (NL_ID);

CREATE TABLE NOTIFICATION_SEQUENCE
(
    NNI_ID bigint NOT NULL,
    NEXT_EVENT_ID bigint NOT NULL
);

ALTER TABLE NOTIFICATION_SEQUENCE ADD CONSTRAINT NOTIFICATION_SEQUENCE_PK PRIMARY KEY (NNI_ID);

-- Constraints for table MASTER_KEYS for class(es) [org.apache.hadoop.hive.metastore.model.MMasterKey]

-- Constraints for table IDXS for class(es) [org.apache.hadoop.hive.metastore.model.MIndex]
ALTER TABLE IDXS ADD CONSTRAINT IDXS_FK1 FOREIGN KEY (INDEX_TBL_ID) REFERENCES TBLS (TBL_ID) ;

ALTER TABLE IDXS ADD CONSTRAINT IDXS_FK2 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

ALTER TABLE IDXS ADD CONSTRAINT IDXS_FK3 FOREIGN KEY (ORIG_TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE UNIQUE INDEX UNIQUEINDEX ON IDXS (INDEX_NAME,ORIG_TBL_ID);

CREATE INDEX IDXS_N51 ON IDXS (SD_ID);

CREATE INDEX IDXS_N50 ON IDXS (ORIG_TBL_ID);

CREATE INDEX IDXS_N49 ON IDXS (INDEX_TBL_ID);


-- Constraints for table PART_COL_STATS for class(es) [org.apache.hadoop.hive.metastore.model.MPartitionColumnStatistics]
ALTER TABLE PART_COL_STATS ADD CONSTRAINT PART_COL_STATS_FK1 FOREIGN KEY (PART_ID) REFERENCES PARTITIONS (PART_ID) ;

CREATE INDEX PART_COL_STATS_N49 ON PART_COL_STATS (PART_ID);


-- Constraints for table PART_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MPartitionPrivilege]
ALTER TABLE PART_PRIVS ADD CONSTRAINT PART_PRIVS_FK1 FOREIGN KEY (PART_ID) REFERENCES PARTITIONS (PART_ID) ;

CREATE INDEX PARTPRIVILEGEINDEX ON PART_PRIVS (PART_ID,PRINCIPAL_NAME,PRINCIPAL_TYPE,PART_PRIV,GRANTOR,GRANTOR_TYPE);

CREATE INDEX PART_PRIVS_N49 ON PART_PRIVS (PART_ID);


-- Constraints for table SKEWED_STRING_LIST for class(es) [org.apache.hadoop.hive.metastore.model.MStringList]

-- Constraints for table ROLES for class(es) [org.apache.hadoop.hive.metastore.model.MRole]
CREATE UNIQUE INDEX ROLEENTITYINDEX ON ROLES (ROLE_NAME);


-- Constraints for table PARTITIONS for class(es) [org.apache.hadoop.hive.metastore.model.MPartition]
ALTER TABLE PARTITIONS ADD CONSTRAINT PARTITIONS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

ALTER TABLE PARTITIONS ADD CONSTRAINT PARTITIONS_FK2 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

CREATE INDEX PARTITIONS_N49 ON PARTITIONS (SD_ID);

CREATE INDEX PARTITIONS_N50 ON PARTITIONS (TBL_ID);

CREATE UNIQUE INDEX UNIQUEPARTITION ON PARTITIONS (PART_NAME,TBL_ID);


-- Constraints for table CDS for class(es) [org.apache.hadoop.hive.metastore.model.MColumnDescriptor]

-- Constraints for table VERSION for class(es) [org.apache.hadoop.hive.metastore.model.MVersionTable]

-- Constraints for table GLOBAL_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MGlobalPrivilege]
CREATE UNIQUE INDEX GLOBALPRIVILEGEINDEX ON GLOBAL_PRIVS (PRINCIPAL_NAME,PRINCIPAL_TYPE,USER_PRIV,GRANTOR,GRANTOR_TYPE);


-- Constraints for table PART_COL_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MPartitionColumnPrivilege]
ALTER TABLE PART_COL_PRIVS ADD CONSTRAINT PART_COL_PRIVS_FK1 FOREIGN KEY (PART_ID) REFERENCES PARTITIONS (PART_ID) ;

CREATE INDEX PART_COL_PRIVS_N49 ON PART_COL_PRIVS (PART_ID);

CREATE INDEX PARTITIONCOLUMNPRIVILEGEINDEX ON PART_COL_PRIVS (PART_ID,"COLUMN_NAME",PRINCIPAL_NAME,PRINCIPAL_TYPE,PART_COL_PRIV,GRANTOR,GRANTOR_TYPE);


-- Constraints for table DB_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MDBPrivilege]
ALTER TABLE DB_PRIVS ADD CONSTRAINT DB_PRIVS_FK1 FOREIGN KEY (DB_ID) REFERENCES DBS (DB_ID) ;

CREATE UNIQUE INDEX DBPRIVILEGEINDEX ON DB_PRIVS (DB_ID,PRINCIPAL_NAME,PRINCIPAL_TYPE,DB_PRIV,GRANTOR,GRANTOR_TYPE);

CREATE INDEX DB_PRIVS_N49 ON DB_PRIVS (DB_ID);


-- Constraints for table TAB_COL_STATS for class(es) [org.apache.hadoop.hive.metastore.model.MTableColumnStatistics]
ALTER TABLE TAB_COL_STATS ADD CONSTRAINT TAB_COL_STATS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE INDEX TAB_COL_STATS_N49 ON TAB_COL_STATS (TBL_ID);


-- Constraints for table TYPES for class(es) [org.apache.hadoop.hive.metastore.model.MType]
CREATE UNIQUE INDEX UNIQUETYPE ON TYPES (TYPE_NAME);


-- Constraints for table TBL_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MTablePrivilege]
ALTER TABLE TBL_PRIVS ADD CONSTRAINT TBL_PRIVS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE INDEX TBL_PRIVS_N49 ON TBL_PRIVS (TBL_ID);

CREATE INDEX TABLEPRIVILEGEINDEX ON TBL_PRIVS (TBL_ID,PRINCIPAL_NAME,PRINCIPAL_TYPE,TBL_PRIV,GRANTOR,GRANTOR_TYPE);


-- Constraints for table DBS for class(es) [org.apache.hadoop.hive.metastore.model.MDatabase]
CREATE UNIQUE INDEX UNIQUEDATABASE ON DBS ("NAME");


-- Constraints for table TBL_COL_PRIVS for class(es) [org.apache.hadoop.hive.metastore.model.MTableColumnPrivilege]
ALTER TABLE TBL_COL_PRIVS ADD CONSTRAINT TBL_COL_PRIVS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE INDEX TABLECOLUMNPRIVILEGEINDEX ON TBL_COL_PRIVS (TBL_ID,"COLUMN_NAME",PRINCIPAL_NAME,PRINCIPAL_TYPE,TBL_COL_PRIV,GRANTOR,GRANTOR_TYPE);

CREATE INDEX TBL_COL_PRIVS_N49 ON TBL_COL_PRIVS (TBL_ID);


-- Constraints for table DELEGATION_TOKENS for class(es) [org.apache.hadoop.hive.metastore.model.MDelegationToken]

-- Constraints for table SERDES for class(es) [org.apache.hadoop.hive.metastore.model.MSerDeInfo]

-- Constraints for table FUNCS for class(es) [org.apache.hadoop.hive.metastore.model.MFunction]
ALTER TABLE FUNCS ADD CONSTRAINT FUNCS_FK1 FOREIGN KEY (DB_ID) REFERENCES DBS (DB_ID) ;

CREATE UNIQUE INDEX UNIQUEFUNCTION ON FUNCS (FUNC_NAME,DB_ID);

CREATE INDEX FUNCS_N49 ON FUNCS (DB_ID);


-- Constraints for table ROLE_MAP for class(es) [org.apache.hadoop.hive.metastore.model.MRoleMap]
ALTER TABLE ROLE_MAP ADD CONSTRAINT ROLE_MAP_FK1 FOREIGN KEY (ROLE_ID) REFERENCES ROLES (ROLE_ID) ;

CREATE INDEX ROLE_MAP_N49 ON ROLE_MAP (ROLE_ID);

CREATE UNIQUE INDEX USERROLEMAPINDEX ON ROLE_MAP (PRINCIPAL_NAME,ROLE_ID,GRANTOR,GRANTOR_TYPE);


-- Constraints for table TBLS for class(es) [org.apache.hadoop.hive.metastore.model.MTable]
ALTER TABLE TBLS ADD CONSTRAINT TBLS_FK2 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

ALTER TABLE TBLS ADD CONSTRAINT TBLS_FK1 FOREIGN KEY (DB_ID) REFERENCES DBS (DB_ID) ;

CREATE INDEX TBLS_N50 ON TBLS (SD_ID);

CREATE UNIQUE INDEX UNIQUETABLE ON TBLS (TBL_NAME,DB_ID);

CREATE INDEX TBLS_N49 ON TBLS (DB_ID);


-- Constraints for table SDS for class(es) [org.apache.hadoop.hive.metastore.model.MStorageDescriptor]
ALTER TABLE SDS ADD CONSTRAINT SDS_FK1 FOREIGN KEY (SERDE_ID) REFERENCES SERDES (SERDE_ID) ;

ALTER TABLE SDS ADD CONSTRAINT SDS_FK2 FOREIGN KEY (CD_ID) REFERENCES CDS (CD_ID) ;

CREATE INDEX SDS_N50 ON SDS (CD_ID);

CREATE INDEX SDS_N49 ON SDS (SERDE_ID);


-- Constraints for table PARTITION_EVENTS for class(es) [org.apache.hadoop.hive.metastore.model.MPartitionEvent]
CREATE INDEX PARTITIONEVENTINDEX ON PARTITION_EVENTS (PARTITION_NAME);


-- Constraints for table SORT_COLS
ALTER TABLE SORT_COLS ADD CONSTRAINT SORT_COLS_FK1 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

CREATE INDEX SORT_COLS_N49 ON SORT_COLS (SD_ID);


-- Constraints for table SKEWED_COL_NAMES
ALTER TABLE SKEWED_COL_NAMES ADD CONSTRAINT SKEWED_COL_NAMES_FK1 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

CREATE INDEX SKEWED_COL_NAMES_N49 ON SKEWED_COL_NAMES (SD_ID);


-- Constraints for table SKEWED_COL_VALUE_LOC_MAP
ALTER TABLE SKEWED_COL_VALUE_LOC_MAP ADD CONSTRAINT SKEWED_COL_VALUE_LOC_MAP_FK1 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

ALTER TABLE SKEWED_COL_VALUE_LOC_MAP ADD CONSTRAINT SKEWED_COL_VALUE_LOC_MAP_FK2 FOREIGN KEY (STRING_LIST_ID_KID) REFERENCES SKEWED_STRING_LIST (STRING_LIST_ID) ;

CREATE INDEX SKEWED_COL_VALUE_LOC_MAP_N50 ON SKEWED_COL_VALUE_LOC_MAP (STRING_LIST_ID_KID);

CREATE INDEX SKEWED_COL_VALUE_LOC_MAP_N49 ON SKEWED_COL_VALUE_LOC_MAP (SD_ID);


-- Constraints for table SKEWED_STRING_LIST_VALUES
ALTER TABLE SKEWED_STRING_LIST_VALUES ADD CONSTRAINT SKEWED_STRING_LIST_VALUES_FK1 FOREIGN KEY (STRING_LIST_ID) REFERENCES SKEWED_STRING_LIST (STRING_LIST_ID) ;

CREATE INDEX SKEWED_STRING_LIST_VALUES_N49 ON SKEWED_STRING_LIST_VALUES (STRING_LIST_ID);


-- Constraints for table PARTITION_KEY_VALS
ALTER TABLE PARTITION_KEY_VALS ADD CONSTRAINT PARTITION_KEY_VALS_FK1 FOREIGN KEY (PART_ID) REFERENCES PARTITIONS (PART_ID) ;

CREATE INDEX PARTITION_KEY_VALS_N49 ON PARTITION_KEY_VALS (PART_ID);


-- Constraints for table PARTITION_KEYS
ALTER TABLE PARTITION_KEYS ADD CONSTRAINT PARTITION_KEYS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE INDEX PARTITION_KEYS_N49 ON PARTITION_KEYS (TBL_ID);


-- Constraints for table SKEWED_VALUES
ALTER TABLE SKEWED_VALUES ADD CONSTRAINT SKEWED_VALUES_FK1 FOREIGN KEY (SD_ID_OID) REFERENCES SDS (SD_ID) ;

ALTER TABLE SKEWED_VALUES ADD CONSTRAINT SKEWED_VALUES_FK2 FOREIGN KEY (STRING_LIST_ID_EID) REFERENCES SKEWED_STRING_LIST (STRING_LIST_ID) ;

CREATE INDEX SKEWED_VALUES_N50 ON SKEWED_VALUES (SD_ID_OID);

CREATE INDEX SKEWED_VALUES_N49 ON SKEWED_VALUES (STRING_LIST_ID_EID);


-- Constraints for table SD_PARAMS
ALTER TABLE SD_PARAMS ADD CONSTRAINT SD_PARAMS_FK1 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

CREATE INDEX SD_PARAMS_N49 ON SD_PARAMS (SD_ID);


-- Constraints for table FUNC_RU
ALTER TABLE FUNC_RU ADD CONSTRAINT FUNC_RU_FK1 FOREIGN KEY (FUNC_ID) REFERENCES FUNCS (FUNC_ID) ;

CREATE INDEX FUNC_RU_N49 ON FUNC_RU (FUNC_ID);


-- Constraints for table TYPE_FIELDS
ALTER TABLE TYPE_FIELDS ADD CONSTRAINT TYPE_FIELDS_FK1 FOREIGN KEY (TYPE_NAME) REFERENCES TYPES (TYPES_ID) ;

CREATE INDEX TYPE_FIELDS_N49 ON TYPE_FIELDS (TYPE_NAME);


-- Constraints for table BUCKETING_COLS
ALTER TABLE BUCKETING_COLS ADD CONSTRAINT BUCKETING_COLS_FK1 FOREIGN KEY (SD_ID) REFERENCES SDS (SD_ID) ;

CREATE INDEX BUCKETING_COLS_N49 ON BUCKETING_COLS (SD_ID);


-- Constraints for table DATABASE_PARAMS
ALTER TABLE DATABASE_PARAMS ADD CONSTRAINT DATABASE_PARAMS_FK1 FOREIGN KEY (DB_ID) REFERENCES DBS (DB_ID) ;

CREATE INDEX DATABASE_PARAMS_N49 ON DATABASE_PARAMS (DB_ID);


-- Constraints for table INDEX_PARAMS
ALTER TABLE INDEX_PARAMS ADD CONSTRAINT INDEX_PARAMS_FK1 FOREIGN KEY (INDEX_ID) REFERENCES IDXS (INDEX_ID) ;

CREATE INDEX INDEX_PARAMS_N49 ON INDEX_PARAMS (INDEX_ID);


-- Constraints for table COLUMNS_V2
ALTER TABLE COLUMNS_V2 ADD CONSTRAINT COLUMNS_V2_FK1 FOREIGN KEY (CD_ID) REFERENCES CDS (CD_ID) ;

CREATE INDEX COLUMNS_V2_N49 ON COLUMNS_V2 (CD_ID);


-- Constraints for table SERDE_PARAMS
ALTER TABLE SERDE_PARAMS ADD CONSTRAINT SERDE_PARAMS_FK1 FOREIGN KEY (SERDE_ID) REFERENCES SERDES (SERDE_ID) ;

CREATE INDEX SERDE_PARAMS_N49 ON SERDE_PARAMS (SERDE_ID);


-- Constraints for table PARTITION_PARAMS
ALTER TABLE PARTITION_PARAMS ADD CONSTRAINT PARTITION_PARAMS_FK1 FOREIGN KEY (PART_ID) REFERENCES PARTITIONS (PART_ID) ;

CREATE INDEX PARTITION_PARAMS_N49 ON PARTITION_PARAMS (PART_ID);


-- Constraints for table TABLE_PARAMS
ALTER TABLE TABLE_PARAMS ADD CONSTRAINT TABLE_PARAMS_FK1 FOREIGN KEY (TBL_ID) REFERENCES TBLS (TBL_ID) ;

CREATE INDEX TABLE_PARAMS_N49 ON TABLE_PARAMS (TBL_ID);



-- -----------------------------------------------------------------------------------------------------------------------------------------------
-- Transaction and Lock Tables
-- These are not part of package jdo, so if you are going to regenerate this file you need to manually add the following section back to the file.
-- -----------------------------------------------------------------------------------------------------------------------------------------------
CREATE TABLE COMPACTION_QUEUE(
	CQ_ID bigint NOT NULL,
	CQ_DATABASE nvarchar(128) NOT NULL,
	CQ_TABLE nvarchar(128) NOT NULL,
	CQ_PARTITION nvarchar(767) NULL,
	CQ_STATE char(1) NOT NULL,
	CQ_TYPE char(1) NOT NULL,
	CQ_TBLPROPERTIES nvarchar(2048) NULL,
	CQ_WORKER_ID nvarchar(128) NULL,
	CQ_START bigint NULL,
	CQ_RUN_AS nvarchar(128) NULL,
	CQ_HIGHEST_TXN_ID bigint NULL,
    CQ_META_INFO varbinary(2048) NULL,
	CQ_HADOOP_JOB_ID nvarchar(128) NULL,
PRIMARY KEY CLUSTERED
(
	CQ_ID ASC
)
);

CREATE TABLE COMPLETED_COMPACTIONS (
	CC_ID bigint NOT NULL,
	CC_DATABASE nvarchar(128) NOT NULL,
	CC_TABLE nvarchar(128) NOT NULL,
	CC_PARTITION nvarchar(767) NULL,
	CC_STATE char(1) NOT NULL,
	CC_TYPE char(1) NOT NULL,
	CC_TBLPROPERTIES nvarchar(2048) NULL,
	CC_WORKER_ID nvarchar(128) NULL,
	CC_START bigint NULL,
	CC_END bigint NULL,
	CC_RUN_AS nvarchar(128) NULL,
	CC_HIGHEST_TXN_ID bigint NULL,
    CC_META_INFO varbinary(2048) NULL,
	CC_HADOOP_JOB_ID nvarchar(128) NULL,
PRIMARY KEY CLUSTERED
(
	CC_ID ASC
)
);

CREATE TABLE COMPLETED_TXN_COMPONENTS(
	CTC_TXNID bigint NULL,
	CTC_DATABASE nvarchar(128) NOT NULL,
	CTC_TABLE nvarchar(128) NULL,
	CTC_PARTITION nvarchar(767) NULL
);

CREATE TABLE HIVE_LOCKS(
	HL_LOCK_EXT_ID bigint NOT NULL,
	HL_LOCK_INT_ID bigint NOT NULL,
	HL_TXNID bigint NULL,
	HL_DB nvarchar(128) NOT NULL,
	HL_TABLE nvarchar(128) NULL,
	HL_PARTITION nvarchar(767) NULL,
	HL_LOCK_STATE char(1) NOT NULL,
	HL_LOCK_TYPE char(1) NOT NULL,
	HL_LAST_HEARTBEAT bigint NOT NULL,
	HL_ACQUIRED_AT bigint NULL,
	HL_USER nvarchar(128) NOT NULL,
	HL_HOST nvarchar(128) NOT NULL,
    HL_HEARTBEAT_COUNT int NULL,
    HL_AGENT_INFO nvarchar(128) NULL,
    HL_BLOCKEDBY_EXT_ID bigint NULL,
    HL_BLOCKEDBY_INT_ID bigint NULL,
PRIMARY KEY CLUSTERED
(
	HL_LOCK_EXT_ID ASC,
	HL_LOCK_INT_ID ASC
)
);

CREATE TABLE NEXT_COMPACTION_QUEUE_ID(
	NCQ_NEXT bigint NOT NULL
);

INSERT INTO NEXT_COMPACTION_QUEUE_ID VALUES(1);

CREATE TABLE NEXT_LOCK_ID(
	NL_NEXT bigint NOT NULL
);

INSERT INTO NEXT_LOCK_ID VALUES(1);

CREATE TABLE NEXT_TXN_ID(
	NTXN_NEXT bigint NOT NULL
);

INSERT INTO NEXT_TXN_ID VALUES(1);

CREATE TABLE TXNS(
	TXN_ID bigint NOT NULL,
	TXN_STATE char(1) NOT NULL,
	TXN_STARTED bigint NOT NULL,
	TXN_LAST_HEARTBEAT bigint NOT NULL,
	TXN_USER nvarchar(128) NOT NULL,
	TXN_HOST nvarchar(128) NOT NULL,
    TXN_AGENT_INFO nvarchar(128) NULL,
    TXN_META_INFO nvarchar(128) NULL,
    TXN_HEARTBEAT_COUNT int NULL,
PRIMARY KEY CLUSTERED
(
	TXN_ID ASC
)
);

CREATE TABLE TXN_COMPONENTS(
	TC_TXNID bigint NULL,
	TC_DATABASE nvarchar(128) NOT NULL,
	TC_TABLE nvarchar(128) NULL,
	TC_PARTITION nvarchar(767) NULL,
	TC_OPERATION_TYPE char(1) NOT NULL
);

ALTER TABLE TXN_COMPONENTS  WITH CHECK ADD FOREIGN KEY(TC_TXNID) REFERENCES TXNS (TXN_ID);

CREATE INDEX TC_TXNID_INDEX ON TXN_COMPONENTS (TC_TXNID);

CREATE TABLE AUX_TABLE (
  MT_KEY1 nvarchar(128) NOT NULL,
  MT_KEY2 bigint NOT NULL,
  MT_COMMENT nvarchar(255) NULL,
  PRIMARY KEY CLUSTERED
(
    MT_KEY1 ASC,
    MT_KEY2 ASC
)
);

CREATE TABLE KEY_CONSTRAINTS
(
  CHILD_CD_ID BIGINT,
  CHILD_INTEGER_IDX INT,
  CHILD_TBL_ID BIGINT,
  PARENT_CD_ID BIGINT NOT NULL,
  PARENT_INTEGER_IDX INT NOT NULL,
  PARENT_TBL_ID BIGINT NOT NULL,
  POSITION INT NOT NULL,
  CONSTRAINT_NAME VARCHAR(400) NOT NULL,
  CONSTRAINT_TYPE SMALLINT NOT NULL,
  UPDATE_RULE SMALLINT,
  DELETE_RULE SMALLINT,
  ENABLE_VALIDATE_RELY SMALLINT NOT NULL
) ;

ALTER TABLE KEY_CONSTRAINTS ADD CONSTRAINT CONSTRAINTS_PK PRIMARY KEY (CONSTRAINT_NAME, POSITION);

CREATE INDEX CONSTRAINTS_PARENT_TBL_ID__INDEX ON KEY_CONSTRAINTS(PARENT_TBL_ID);

CREATE TABLE WRITE_SET (
  WS_DATABASE nvarchar(128) NOT NULL,
  WS_TABLE nvarchar(128) NOT NULL,
  WS_PARTITION nvarchar(767),
  WS_TXNID bigint NOT NULL,
  WS_COMMIT_ID bigint NOT NULL,
  WS_OPERATION_TYPE char(1) NOT NULL
);


-- -----------------------------------------------------------------
-- Record schema version. Should be the last step in the init script
-- -----------------------------------------------------------------
INSERT INTO VERSION (VER_ID, SCHEMA_VERSION, VERSION_COMMENT) VALUES (1, '2.3.0', 'Hive release version 2.3.0');
"""

Cell 2. Get Connection Parameters.

These are parameters of sql server you have created in Azure.

val server = "server-name"
val jdbcDatabase = "meta"
val username = "admin username"
val password = "admin password"

Cell 3. Execute the DDL

import java.util.Properties
import java.sql.DriverManager

val driverClass = "com.microsoft.sqlserver.jdbc.SQLServerDriver"
val jdbcHostname = "server-name.database.windows.net"
val jdbcPort = 1433
val jdbcUrl = "jdbc:sqlserver://" + jdbcHostname + ":" + jdbcPort + ";database=" + jdbcDatabase + ";user=" + username + ";password=" + password
val connectionProperties = new Properties()
connectionProperties.put("user", username)
connectionProperties.put("password", password)
connectionProperties.setProperty("Driver", driverClass)

val connection = DriverManager.getConnection(jdbcUrl, username, password)
val stmt = connection.createStatement()

stmt.execute(script)
connection.close()

At this point, you database should be populated with necessary tables.

Enforce Metastore on All Clusters

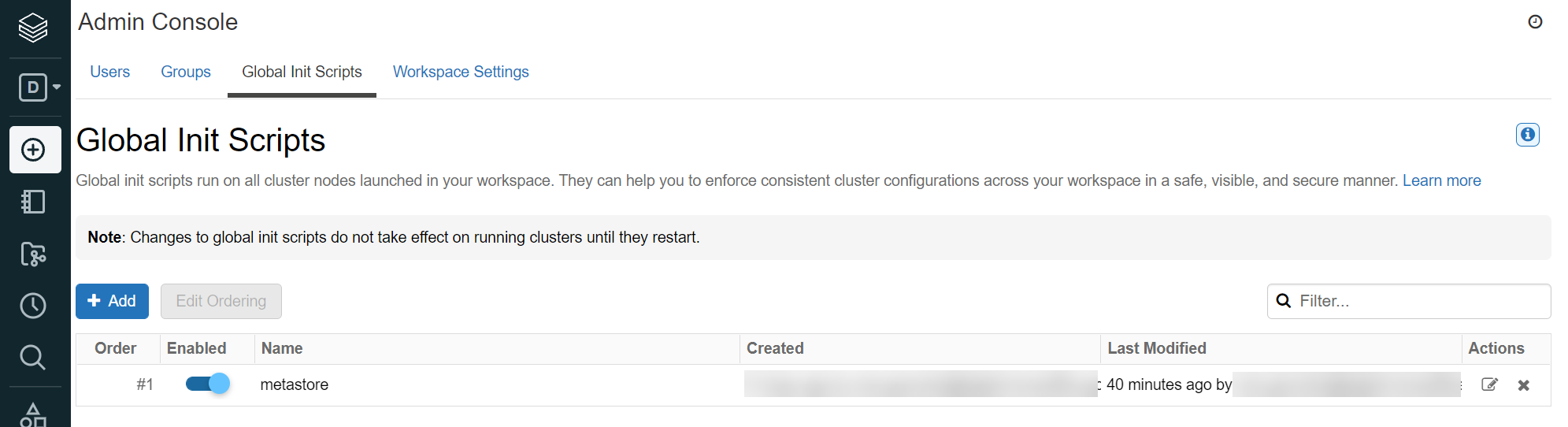

In order to transparently force all the clusters to use the metastore, you can create a global init script (from admin console). This will run before cluster starts.

Here is the content of the script:

# Loads environment variables to determine the correct JDBC driver to use.
source /etc/environment
# Quoting the label (i.e. EOF) with single quotes to disable variable interpolation.
cat << 'EOF' > /databricks/driver/conf/00-custom-spark.conf
[driver] {
    # Hive specific configuration options.
    # spark.hadoop prefix is added to make sure these Hive specific options will propagate to the metastore client.
    # JDBC connect string for a JDBC metastore
    "spark.hadoop.javax.jdo.option.ConnectionURL" = "jdbc:sqlserver://server-name.database.windows.net:1433;database=meta;encrypt=true;trustServerCertificate=false;hostNameInCertificate=*.database.windows.net;loginTimeout=30;"

    # Username to use against metastore database
    "spark.hadoop.javax.jdo.option.ConnectionUserName" = "mssql-username"

    # Password to use against metastore database
    "spark.hadoop.javax.jdo.option.ConnectionPassword" = "mssql-password"

    # Driver class name for a JDBC metastore
    "spark.hadoop.javax.jdo.option.ConnectionDriverName" = "com.microsoft.sqlserver.jdbc.SQLServerDriver"

    # Spark specific configuration options
    "spark.sql.hive.metastore.version" = "2.3.7"
    "spark.sql.hive.metastore.jars" = "builtin"
}
EOF

and replace server, database and credentials to yours. Note that this is using built-in hive metastore jars, so your cluster won’t need to download anything unlike the official documentation says.

Enjoy

Restart your clusters and enjoy the custom metastore.

Em, excuse me! Have Android 📱 and use Databricks? You might be interested in my totally free (and ad-free) Pocket Bricks . You can get it from Google Play too:

To contact me, send an email anytime or leave a comment below.
